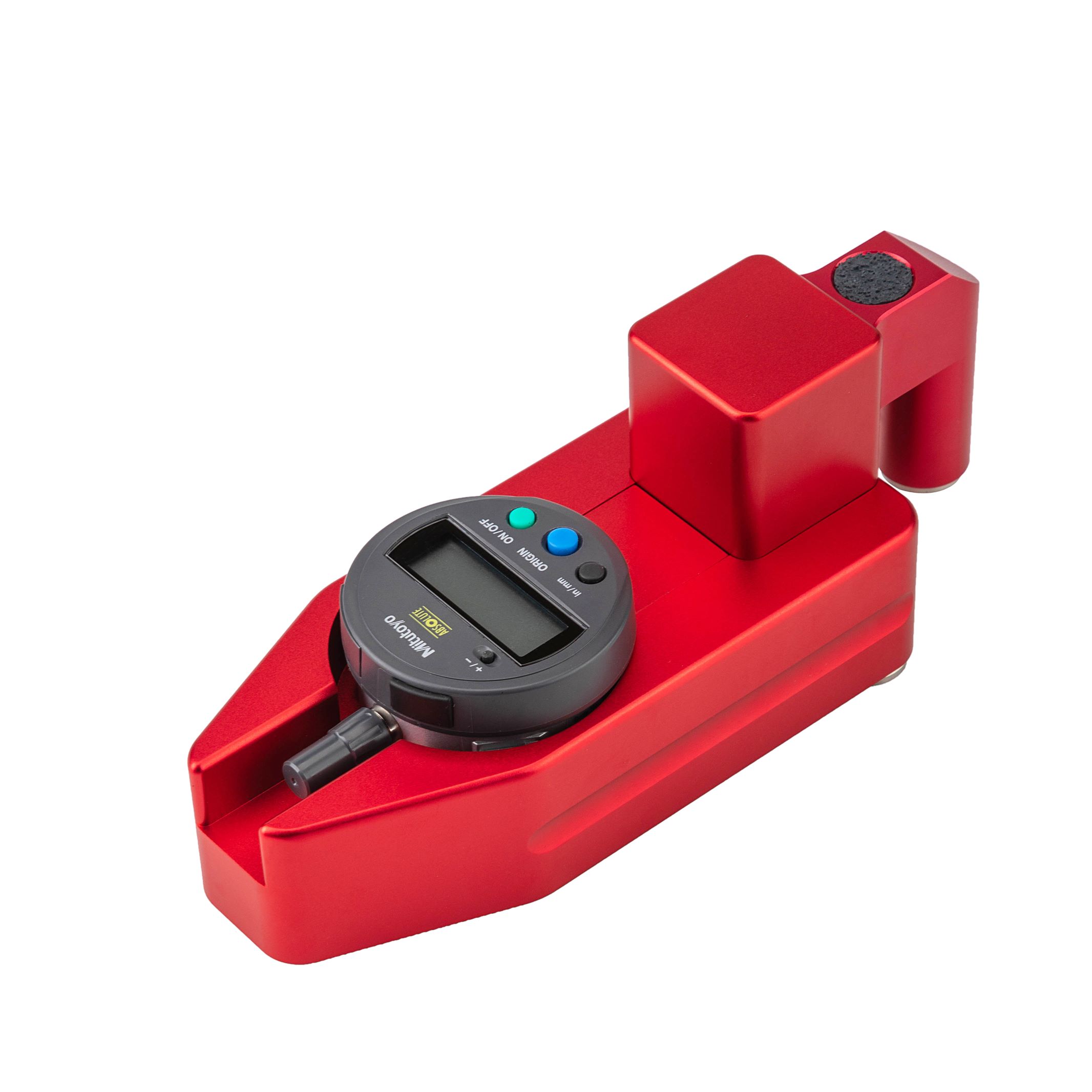

950A/B Road marking thickness measuring instrument is mainly used to measure the thickness of road markings. It is designed and produced for road marking manufacturers, road marking production process construction units, and road quality supervision units to measure the thickness of road markings. The instrument has the characteristics of reasonable structure design, simple operation, wide applicability, and high measurement accuracy.

950A is with Sangliang gauge

950B is with Mitutoyo gauge

Main technical indicators

l  Measuring range： -12.7mm ~ 12.7mm

l  Minimum resolution： 0 . 01mm

l  Indicating accuracy： 0 . 02 mm

l  Usable temperature range： -10 ℃ - 60 ℃

l  High-precision dial indicator

l  Can measure height/thickness/depth
