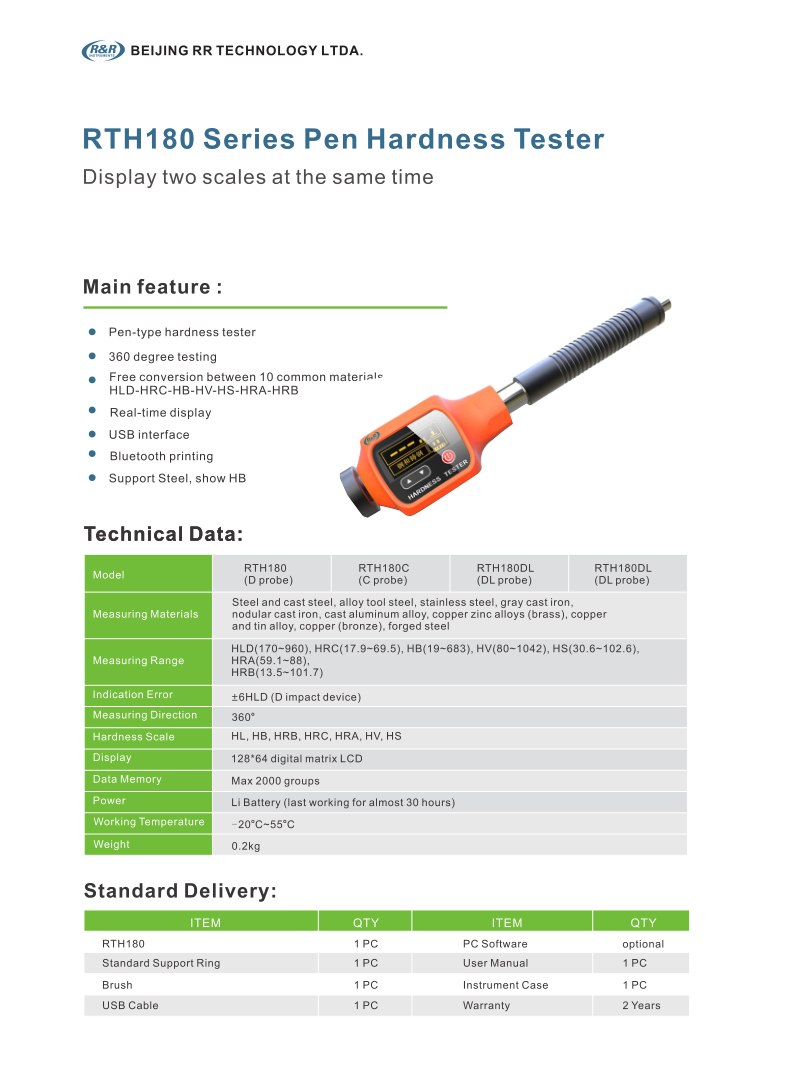

Pen Type Hardness Tester RTH180 Series
Technical Data: Model | RTH180 (D probe) | RTH180C (C probe) | RTH180DL (DL probe) | RTH180S-D (Specially for Roll) | Measuring Materials | Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), copper and tin alloy, copper (bronze), forged steel | Measuring Range | HLD(170~960), HRC(17.9~69.5), HB(19~683), HV(80~1042), HS(30.6~102.6), HRA(59.1~88), HRB(13.5~101.7) | Indication Error | ±6HLD (D impact device) | Measuring Direction | 360° | Hardness Scale | HL, HB, HRB, HRC, HRA, HV, HS | Display | 128*64 digital matrix LCD | Data Memory | Max 2000 groups | Power | Li Battery (last working for almost 30 hours) | Working Temperature | -20°C~55°C | Host weight | 0.2kg |
Standard Delivery: ITEM | QTY | RTH180 | 1 PC | Standard Support Ring | 1 PC | Brush | 1 PC | USB Cable | 1 PC | PC Software | optional | User Manual | 1 PC | Instrument Case | 1 PC | Warranty | 2 Years |
|
